Dody Caster Wheels Product Range
Caster Wheels Product Range
Please refer to the shop menu: Industrial->Caster Wheel, filter the result on the left to choose what you need.
Below product series are sorted based on the weight capacity in general from light duty to heavy duty. Search the Group ID you can find all the products with or without bundles.
Note: This is a large table, please swipe left or right to view more details on small screens.
| Sample Photo of the Product Series | Product Group |
Available |
Key Specs of the Smallest Size | Key Specs of the Largest Size | ||||
| Smallest Size |
Lowest Capacity |
Lowest Overall Height |
Largest Size |
Largest Capacity |
Largest Overall Height |
|||
 |

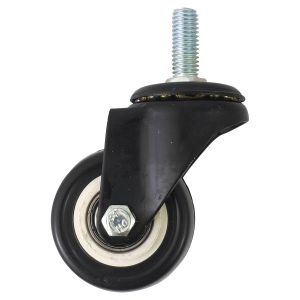

SMALL CASTER SERIES 1/3 Bolt Caster Wheel
|
2 inch 3 inch |
2 inch | 45KG per Caster | 73MM | 3 inch | 100KG per Caster | 105MM |
 |

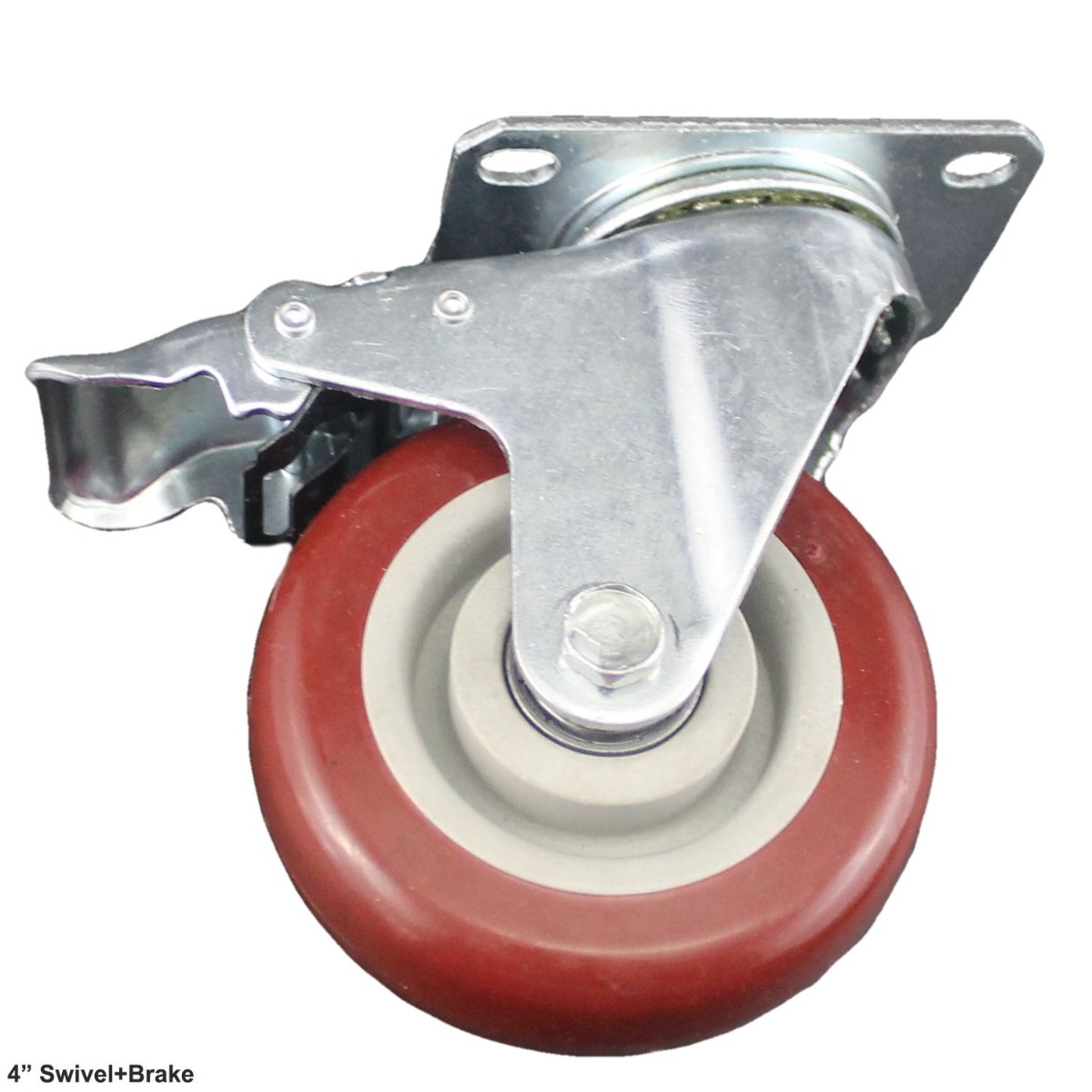

SMALL CASTER SERIES 2/3 Plastic Caster Wheel
|
3 inch 4 inch 5 inch |
3 inch | 120KG per Caster | 100MM | 5 inch | 140KG per Caster | 156MM |
 |
SMALL CASTER SERIES 3/3 Stainless Steel Caster
|
3 inch 4 inch 5 inch |
3 inch | 120KG per Caster | 100MM | 5 inch | 140KG per Caster | 156MM |
 |

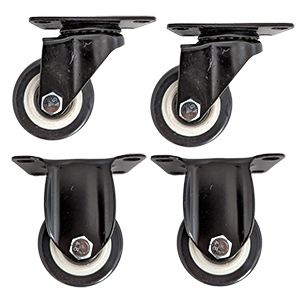

LOW PROFILE SERIES 1/2 Black and White Caster
|
2.5 inch 3 inch |
2.5 inch | 80KG per Caster | 90MM | 3 inch | 100KG per Caster | 105MM |
 |

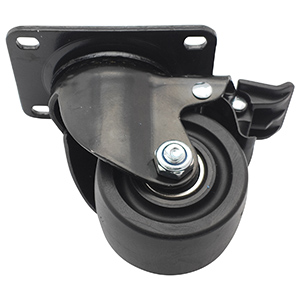

LOW PROFILE SERIES 2/2 Black Caster
|
1.5 inch 2.5 inch 3 inch |
1.5 inch | 50KG per Caster | 70MM | 3 inch | 250KG per Caster | 100MM |
 |

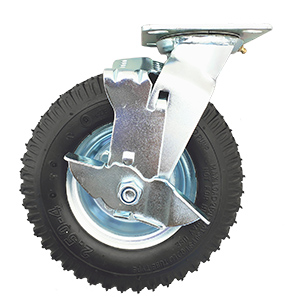

ROUGH TERRAIN SERIES 1/3 Inflatbale Casters
|
6 inch 8 inch |
6 inch | 80KG per Caster | 185MM | 8 inch | 120KG per Caster | 250MM |
 |

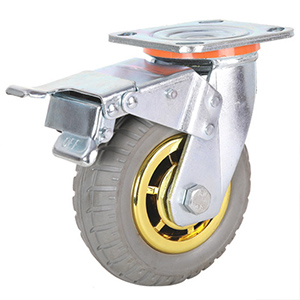

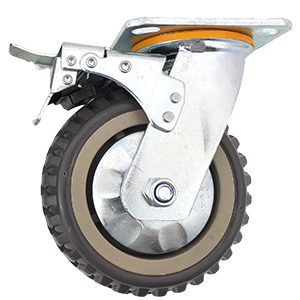

ROUGH TERRAIN SERIES 2/3 Casters with Cover
|
4 inch 5 inch 6 inch 8 inch |
4 inch | 240KG per Caster | 135MM | 8 inch | 400KG per Caster | 240MM |
 |
ROUGH TERRAIN SERIES 3/3 Rubber Casters
|
4 inch 5 inch 6 inch 8 inch |
4 inch | 280KG per Caster | 142MM | 8 inch | 400KG per Caster | 240MM |
 |

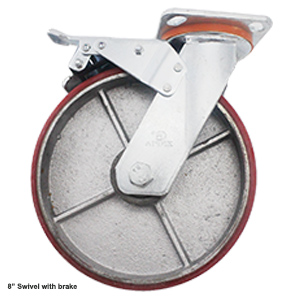

HEAVY DUTY SERIES Metal Casters
|
4 inch 5 inch 6 inch 8 inch |
4 inch | 250KG per Caster | 135MM | 8 inch | 600KG per Caster | 230MM |
 |

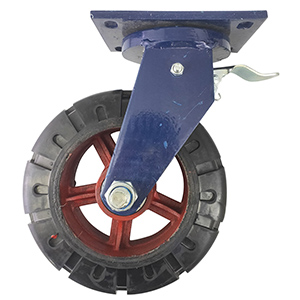

SUPER HEAVY DUTY SERIES 1/2 Rubber Casters
|
6 inch 8 inch 10 inch 12 inch |
6 inch | 900KG per Caster | 200MM | 12 inch | 1200KG per Caster | 350MM |
 |

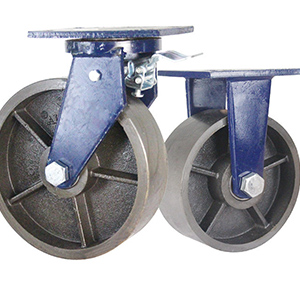

SUPER HEAVY DUTY SERIES 2/2 All Metal Casters
|
6 inch 8 inch 10 inch 12 inch |
6 inch | 1200KG per Caster | 200MM | 12 inch | 3000KG per Caster | 370MM |
