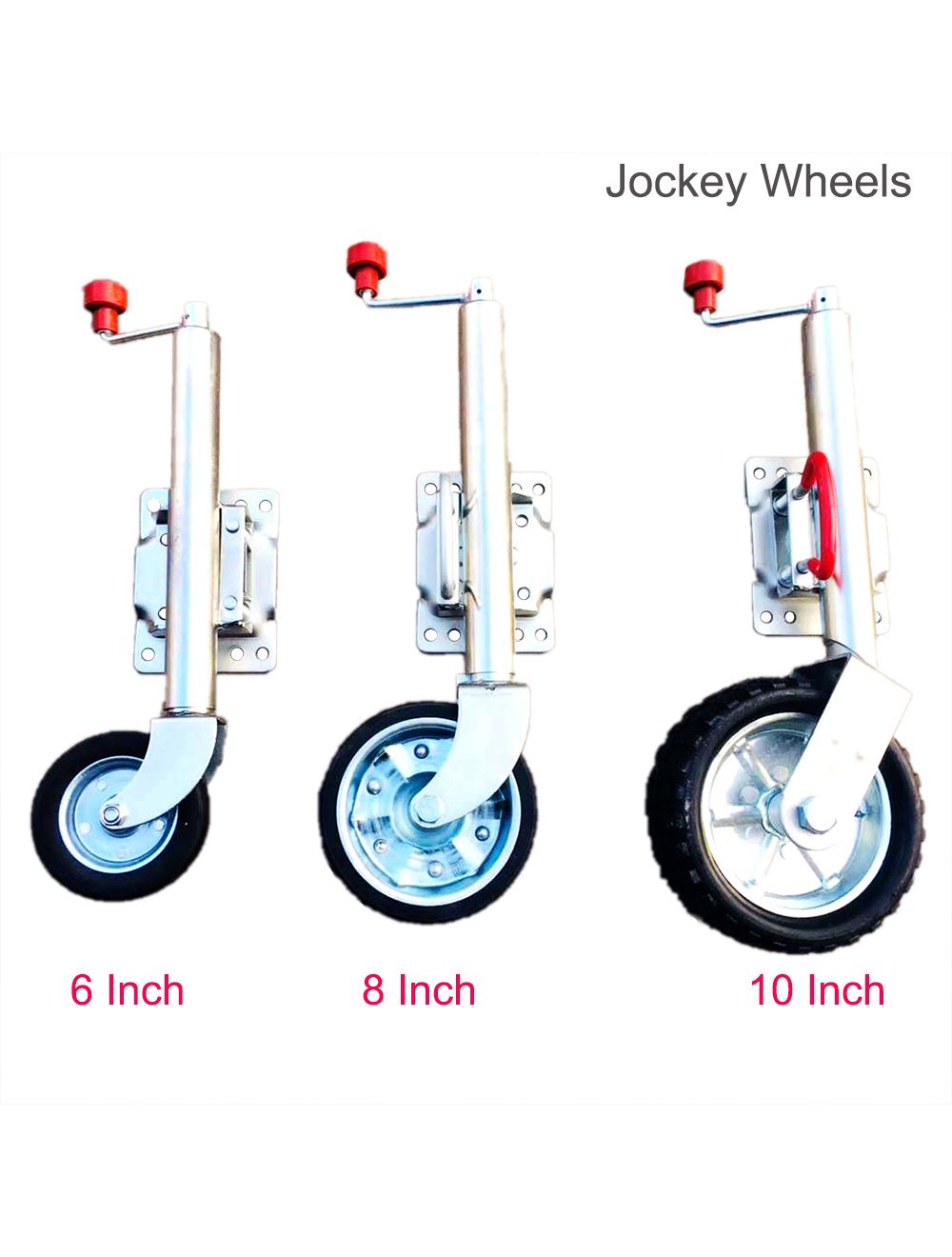

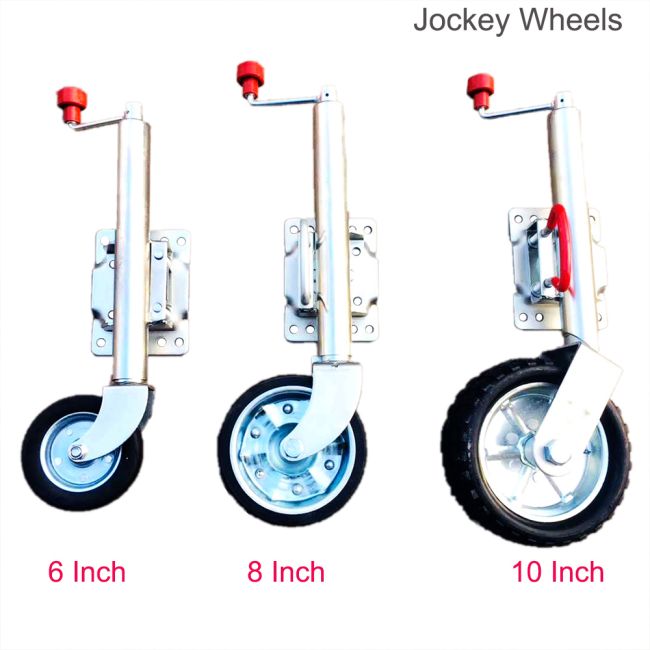

Jockey Wheel 6/8/10" Swing Up Solid Wheel Caravan Boat Trailer

WARNING:
Check the size before decision
The installation plate for 8 inch one may be slightly different from the photo, but that shall not affect installation.

DESCRIPTION:
Jockey wheel for trailer, caravan, boat trailer etc. No need to remove from the trailer, just turn it 90 degrees to be travel ready.

FEATURES:
#6 Inch Jockey Wheel
Plate with pre-drilled holes for easier installation
Or be welded to the trailer frame
Swing up/down
Capacity: 540kg for 6 inch
Most of jockey wheel bears a fraction of the total weight of the trailer (calculation highly dependent on weight center and length of lower frame)
For detailed size, please refer to one of the photos.
Metal wheel with rubber solid tyre
Height from Center of the plate to ground: Min 310mm, Max 550mm Approx.
Height Range: 240mm Approx.
Overall Height: Min:610mm, Max: 850mm
Installation Plate size: 190mm x 140mm
Size of the holes on the Plate: Diameter: Approx. 13mm
Swing Arm length: 130mm
Whee Axis distance: 60mm
Use spanner to unscrew the wheel, detach, clean and grease the wheel

#8 Inch Jockey Wheel
Plate with pre-drilled holes for easier installation
Or be welded to the trailer frame
Swing up/down
Capacity: 675kg for 8 inch
Most of jockey wheel bears a fraction of the total weight of the trailer (calculation highly dependent on weight center and length of lower frame)
For detailed size, please refer to one of the photos.
Metal wheel with rubber tyre
Height from Center of the plate to ground: Min 320mm, Max 580mm Approx.
Height Range: 260mm Approx.
Overall Height: Min: 620mm, Max: 870mm
Installation Plate size: 210mm x 140m
Size of the holes on the Plate: Diameter: Approx. 13mm
Swing Arm length: 160mm
Whee Axis distance: 70mm
Use spanner to unscrew the wheel, detach, clean and grease the wheel

#10 Inch Jockey Wheel
Plate with pre-drilled holes for easier installation
Or be welded to the trailer frame
Swing up/down
Capacity: 900kg for 10 inch
Most of jockey wheel bears a fraction of the total weight of the trailer (calculation highly dependent on weight center and length of lower frame)
For detailed size, please refer to one of the photos.
Metal wheel with rubber tyre
Height from Center of the plate to ground: Min 370mm, Max 610mm Approx.
Height Range: 240mm Approx.
Overall Height: Min: 625mm, Max: 880mm
Installation Plate size: 190mm x 140m
Size of the holes on the Plate: Diameter: Approx. 13mm
Swing Arm length: 130mm
Wheel Axis distance: 80mm
Use spanner to unscrew the wheel, detach, clean and grease the wheel

PACKAGE INCLUDE:
1x jockey wheel
